Best paste filling machine 50-500ml for food, pharma, cosmetics

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Best paste filling machine 50-500ml for food, pharma, cosmetics Specification

Core Components
Filling nozzles Product hopper Piston assembly Pneumatic cylinder Control panel Solenoid valve Air regulator (FRL) Foot pedal Machine frame Sealing gaskets

Dimension (L*W*H)
700*550*1350 Micromete (micron)

Driven Type
pneumatic pump/servo motor

Filling Material
Food & Beverage: sauces, jam, peanut butter, honey. Cosmetics: creams, gels, lotions. Pharmaceuticals: ointments, medicated pastes. Chemicals: adhesives, sealants.

Product Type
paste filling machine

Filling Range
50-500ml

Warranty
1year

Weight
350-400 Kilograms (kg)

Air Consumption
6-8 bar

Packaging Type
standard

Usage & Applications
Food & Beverage: sauces, jam, peanut butter, honey. Cosmetics: creams, gels, lotions. Pharmaceuticals: ointments, medicated pastes. Chemicals: adhesives, sealants. Sample Dual Head Paste Filler Machines You Can Consider Double Nozzle Paste Filling Machine 100 1000 ml 68,999 Toolsvilla Sonic Industries Pneumatic Paste Filler 69,900 Sonic Industries Semi Automatic Paste Fillers 100 1000 ml Double Head 79,500 Yantratools Double Head Paste Filling Machine 10 100 ml 96,003 Yantracart Double Nozzle Semi Automatic Paste Filling Machine 50 500 ml 66,499 Toolsvilla Top Picks Double Nozzle Paste Filling Machine 100 1000 ml Versatile range great for medium to larger container sizes. Sonic Industries Pneumatic Paste Filler Pneumatic system with strong accuracy and reliability. Semi Automatic Paste Fillers 100 1000 ml Double Head Well-suited for industrial semi-automatic filling lines. Double Head Paste Filling Machine 10 100 ml Best for smaller containers or sample packaging. Double Nozzle Semi Automatic Paste Filling Machine 50 500 ml Balanced option for typical production needs. How It Works (Simple) Load Product: Thick paste or gel goes into a hopper attached on top. Set Volume: Adjust piston stroke or dial for the desired fill volume. Simultaneous Fill: Two nozzles dispense measured paste into containers with a foot pedal or button trigger. Anti-Drip Nozzles: Helps prevent waste and keeps filling neat. Choosing the Right Machine Here s how to decide: Production Speed: Dual heads are ideal if you need to double output compared to one head. Viscosity Level: Honey, creams, or peanut butter ensure the machine supports your product thickness. Filling Range: Pick based on the container sizes you use. Budget & Automation Needs: Semi-automatic is cost-effective for startups; fully automatic if planning large-scale operations. If you want, I can help you compare specific models based on your product type (e.g., honey vs ointment) or budget range just let me know! core component Here are the core components of a dual-head paste filler machine the main parts that make the machine work reliably and accurately: 1. Filling Heads (Nozzles) Dual filling nozzles the heart of the machine. Dispense paste into containers simultaneously. Often fitted with anti-drip tips to reduce waste. 2. Product Hopper (Tank) Holds the paste or viscous product before filling. Usually made of stainless steel (SS304 / SS316) for hygiene and easy cleaning. Sized based on production needs (e.g., 10 L 50 L or more). 3. Pumps / Pistons There are two common types: Piston Pump System: Delivers accurate volumetric fills great for thick, high-viscosity pastes (creams, adhesives). Gear or Peristaltic Pumps: Used when gentle handling or continuous flow is needed. Pistons are most common in paste filler machines. 4. Control System Controller Panel: Usually digital or manual dials for setting fill volume. Displays fill quantity and allows adjustment of parameters. Some models include PLC or touch screen for advanced control. 5. Actuation System This is how the machine is triggered: Foot Pedal: Operator-controlled trigger for semi-automatic machines. Push Button / Lever: Alternative manual controls. Pneumatic or Servo Drive: For smooth, consistent motion of pistons. 6. Air Supply & Pneumatics (if Pneumatic) Air Compressor & Air Lines For machines driven by air pressure. Provides power to pistons and controls. Valves & Regulators Adjust air pressure for consistent filling force. 7. Frame & Structural Components Machine Body: Stainless steel or robust metal framing. Adjustable Feet/Wheels: For leveling and mobility. Safety Guards: Cover moving parts. 8. Adjustment Mechanisms Volume Control: Adjust stroke length of pistons. Height Adjustment: For accommodating different container heights. Nozzle Positioners: Fine-tune alignment with containers. 9. Cleaning & Maintenance Accessories Quick-release fittings Drain valves Covers & seals These ensure easier cleaning especially when switching products. Optional / Advanced Components Depending on automation level: Automatic Container Indexing Table Conveyor Integration Sensors / Proximity Switches Touchscreen HMI Servo Drives for precise motion control Summary (Quick View) Component Function Filling Heads Dispense material into containers Hopper Holds product Pump / Pistons Drives measured paste delivery Control System User interface & fill settings Actuation (Foot/Auto) Start/stop filling action Air/Pneumatic System Power for motion (if pneumatic) Frame & Adjustments Physical support & configuration Cleaning Accessories Facilitate maintenance If you want, I can help you choose the right components for your specific product type (e.g., honey vs ointment vs adhesive), or draft a parts list for quotation from suppliers. application Here are the applications of a dual-head paste filler machine where it s commonly used and what kinds of products it handles best: Industrial Applications Food & Beverage Industry Used for filling thick, semi-solid food products with high accuracy. Jam & jelly Honey Peanut butter Ketchup & sauces Mayonnaise Chutney & paste-based foods Cosmetic & Personal Care Ideal for creams and gels that need clean, precise filling. Face creams Lotions Hair gels Body butter Scrubs Pharmaceutical Industry Designed for hygienic, contamination-free filling. Ointments Medicinal creams Herbal pastes Balms (SS316 contact parts often preferred here.) Chemical Industry Handles high-viscosity chemical products safely. Adhesives Grease Lubricants Sealants Putty Ayurvedic & Herbal Products Common in small-to-medium production units. Herbal pastes Ayurvedic creams Natural gels Container Types Supported Jars Bottles Plastic containers Metal containers Wide-mouth containers Why Dual-Head for These Applications? Higher output (fills two containers at once) Accurate volumetric filling Suitable for thick & sticky materials Reduced labor cost Consistent product quality Quick Summary Table Industry Typical Products Food Sauces, jam, honey Cosmetics Creams, gels Pharma Ointments, balms Chemicals Grease, adhesive Herbal Ayurvedic pastes If you want, I can also provide this in catalog style, bullet-only format, or tailor it to a specific industry (food / pharma / cosmetic) for your product listing. technical specification Here s a typical technical specification outline for a dual-head paste filling machine useful for evaluating products, preparing RFQs, or comparing suppliers: Technical Specifications Dual Head Paste Filler Machine Machine Model / Type Dual-head semi-automatic / automatic paste filling machine Filling Performance Parameter Typical Value Filling Heads 2 nozzles Filling Range 10 ml 500 ml (adjustable) (other ranges available: 50 1000 ml, 100 2000 ml) Filling Accuracy 1% 2% Filling Speed 20 40 bottles/min (depends on product viscosity & operation) Repeatability High precision piston system Pump & Drive Component Specification Pump Type Piston / Gear / Peristaltic (often piston for paste) Drive System Pneumatic / Servo Motor Air Pressure (if pneumatic) 0.6 0.8 MPa (6 8 bar) Air Consumption ~20 50 L/min Control & Operation Control Panel: Digital display with push buttons / Touchscreen HMI (optional) Settings: Adjustable filling volume Operation Mode: Foot pedal or automatic start/stop Sensors: Photoelectric sensors / Limit switches (optional) Hopper & Material Contact Parts Feature Details Hopper Capacity 10 L / 20 L / 30 L / 50 L options Material Contact Parts Stainless Steel SS304 or SS316 (SS316 recommended for pharma/food) Surface Finish Polished (easy clean) Nozzle & Tubing Feature Specification Nozzle Type Stainless steel anti-drip nozzles Nozzle Diameter Adjustable (fit container opening) Tubing Food-grade / chemical-proof tubing Structure & Build Frame: Stainless steel or carbon steel with powder coating Machine Size | ~600 500 1300 mm (varies by model) Weight | 60 120 kg (approx.) Leveling Feet: Adjustable Electrical Parameter Typical Value Power Supply 220 VAC / 50 Hz (or 110 VAC / 60 Hz) Power Consumption ~150 300 W (depends on model) Protection Emergency stop, overload protection Cleanability & Maintenance Quick-release fittings Easy-clean hopper Standard tools included Safety & Compliance Emergency stop switch Safety guards CE / ISO certified (varies by manufacturer) Optional Upgrades Touchscreen HMI Servo drive for higher precision Automatic container positioning Conveyor integration Pneumatic/automatic lid cap placement Example Specification Snippet (Copy-Ready) Model: DH-PFM-500 Filling Range: 50 500 ml Filling Heads: 2 Accuracy: 1% Hopper Capacity: 20 L SS304 Drive Type: Pneumatic Air Pressure: 0.7 MPa Control: Digital panel with foot pedal Power: 220 V, 50 Hz, 250 W Machine Size: 700 550 1350 mm If you want, I can tailor this technical specification sheet specifically for: Food-grade filling Pharmaceutical/sterile use High-volume industrial production A particular filling volume range (e.g., 100 1000 ml) Just tell me what you need! dimension in l*w*h in inches and mm Here is a standard / commonly used dimension for a dual-head paste filling machine, shown clearly in L W H format in both mm and inches (catalog-ready style): Machine Dimensions (L W H) Unit Length (L) Width (W) Height (H) Millimeters (mm) 700 mm 550 mm 1350 mm Inches (in) 27.6 in 21.7 in 53.1 in Notes Dimensions may slightly vary depending on: Hopper capacity (10 L / 20 L / 30 L) Drive type (pneumatic / servo) Frame design (SS full body or partial) These dimensions are widely accepted for semi-automatic dual-head paste fillers in the 50 500 ml to 100 1000 ml range. If you want, I can: Adjust dimensions for a larger hopper model Provide compact or heavy-duty industrial dimensions Format this exactly for IndiaMART / catalog / datasheet Just tell me core component only name Here are the core components (names only) of a dual-head paste filler machine: Filling nozzles Product hopper Piston assembly Pneumatic cylinder / drive motor Control panel Solenoid valves Air regulator & FRL unit Foot pedal / start switch Frame & structure Product tubing & fittings Sealing rings & gaskets If you want this shorter (5 6 items) or grouped for a product listing, tell me. core component name only Filling nozzles Product hopper Piston assembly Pneumatic cylinder Control panel Solenoid valve Air regulator (FRL) Foot pedal Machine frame Sealing gaskets filling material name Here are the filling material names only for a dual-head paste filler machine: Paste Cream Gel Ointment Sauce Jam Honey Peanut butter Grease Adhesive If you need this industry-wise (food / cosmetic / pharma / chemical) or shorter for a catalog, just say the word. ChatGPT can make mistakes. Check important info. See Cookie Preferences.

Motor Power
electric Volt (V)

Best paste filling machine 50-500ml for food, pharma, cosmetics Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About Best paste filling machine 50-500ml for food, pharma, cosmetics

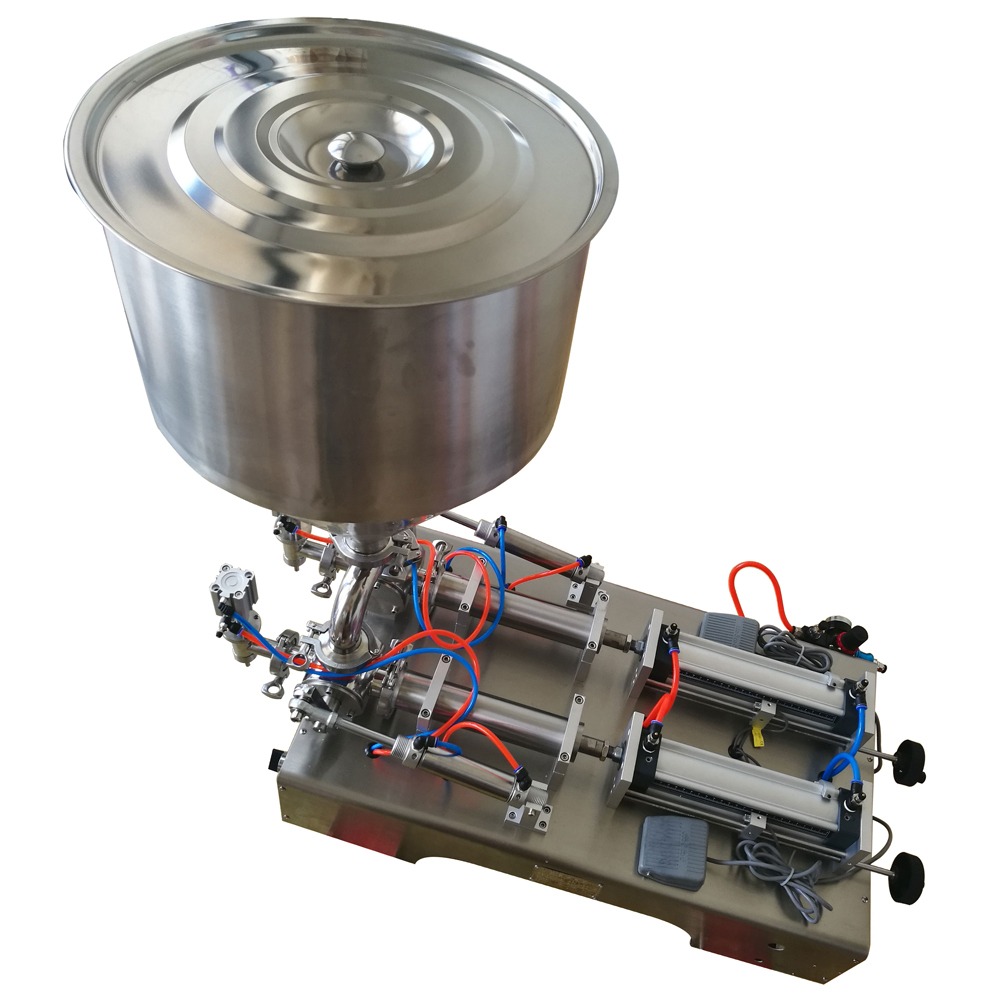

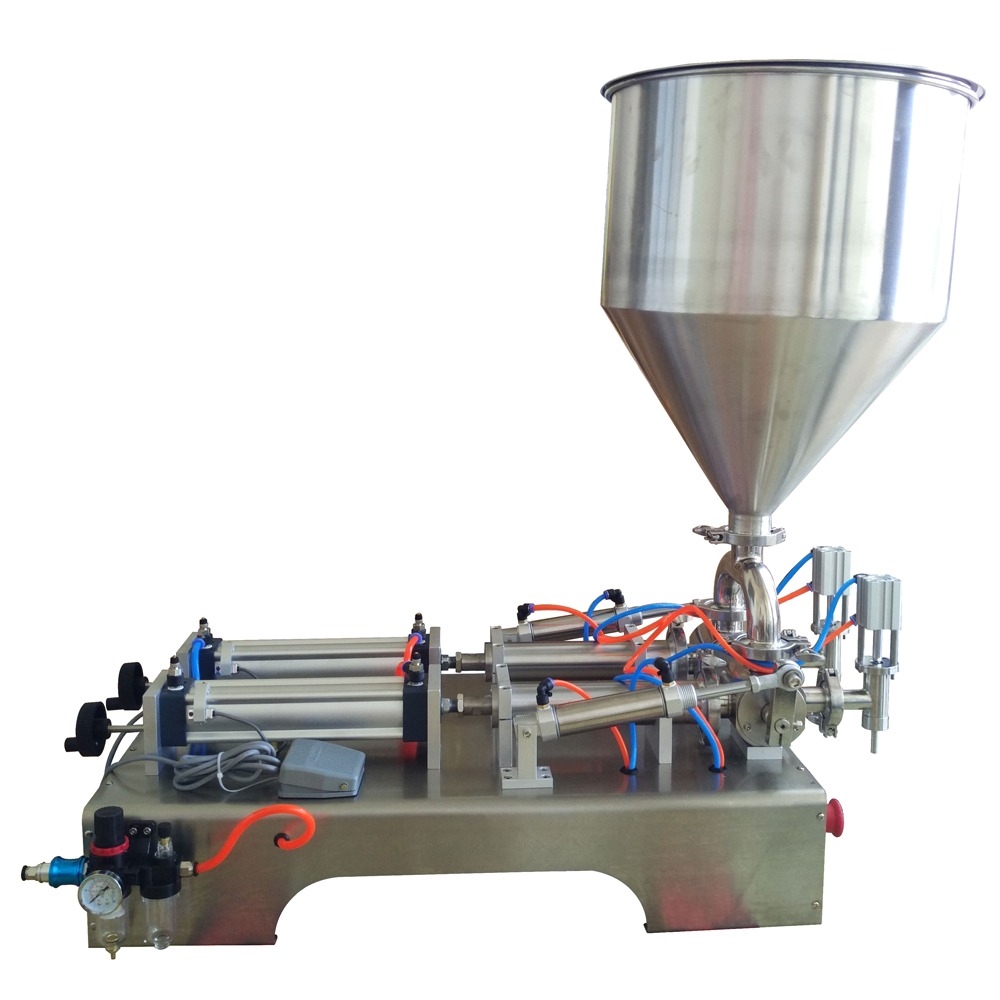

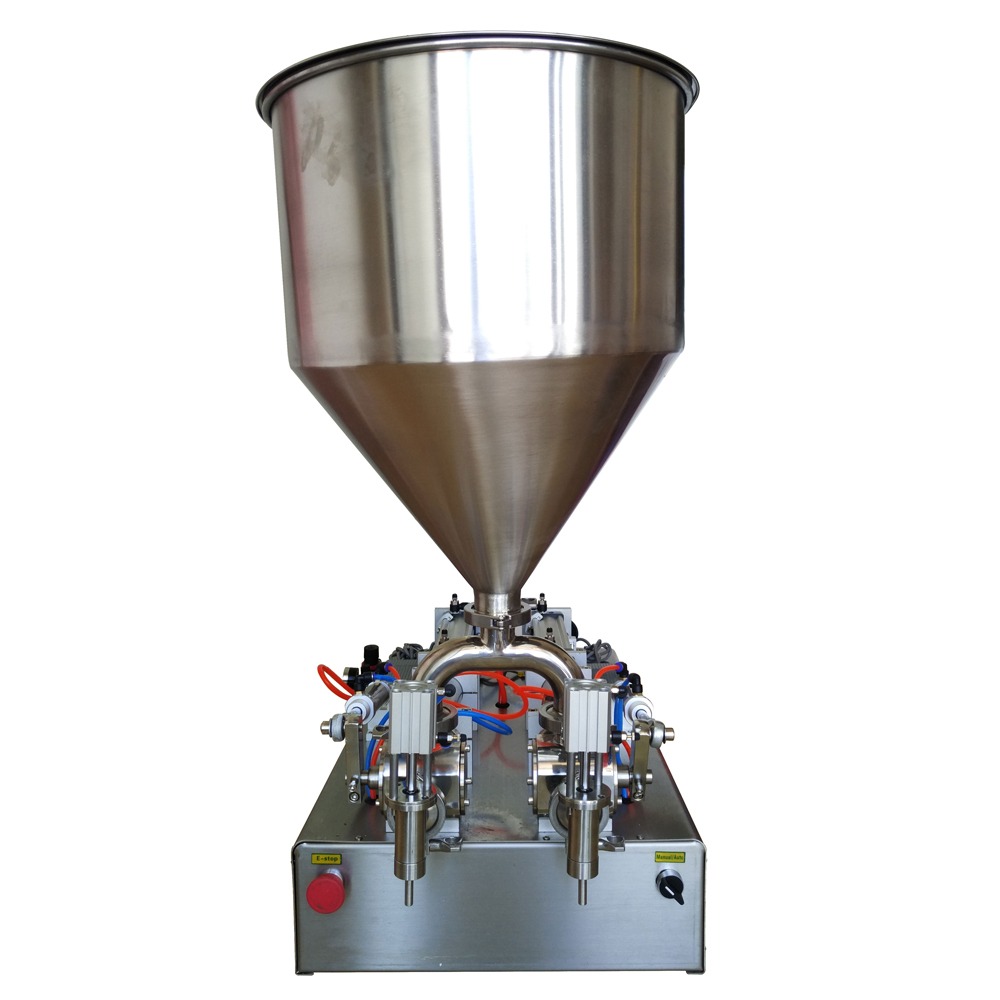

A dual-head paste filling machine is industrial equipment used to fill viscous products (pastes, creams, gels, sauces, ointments) into containers such as jars, bottles, tubes, etc. The dual head means it has two synchronized filling nozzles that can fill two containers at once, effectively increasing production speed and productivity.

Key Features

Two Filling Heads: Doubles output compared to single-head models by filling two containers simultaneously.
Piston or Pneumatic Mechanism: Most semi-automatic models use piston or pneumatic systems for precise volume control.
Adjustable Filling Range: Usually adjustable common ranges are 10100 ml, 50500 ml, up to 1000 ml (1 L) or more per head depending on model.
High Accuracy: Filling precision around 1% to minimize waste and ensure consistent results.
Stainless Steel Construction: SS304 or SS316 bodies help maintain hygiene and corrosion resistance especially important for food, cosmetics, and pharma applications.
Operation: Often semi-automatic with foot pedal or push button, suitable for small to medium production setups.
