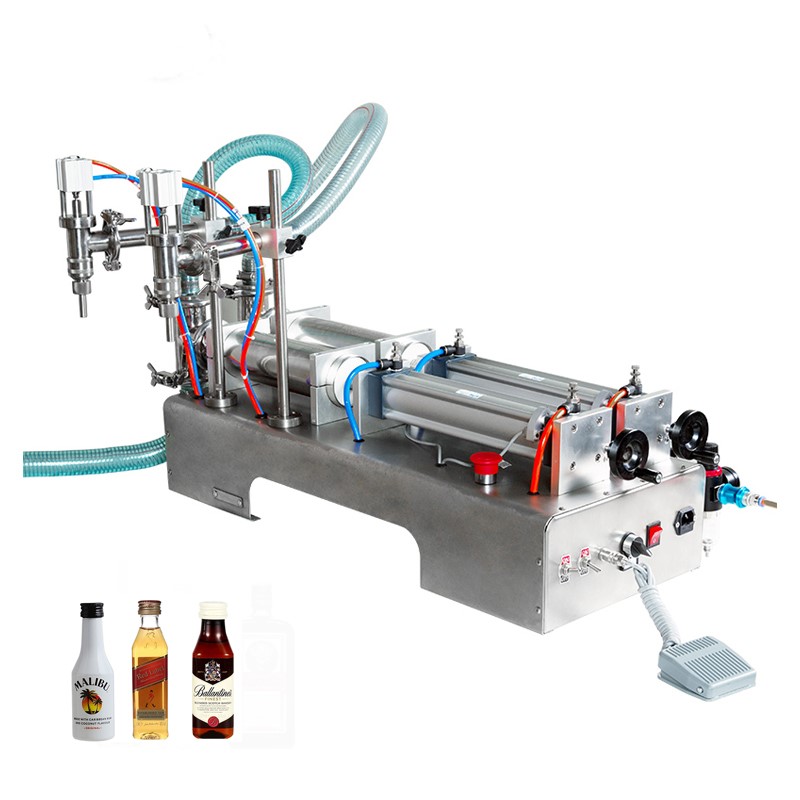

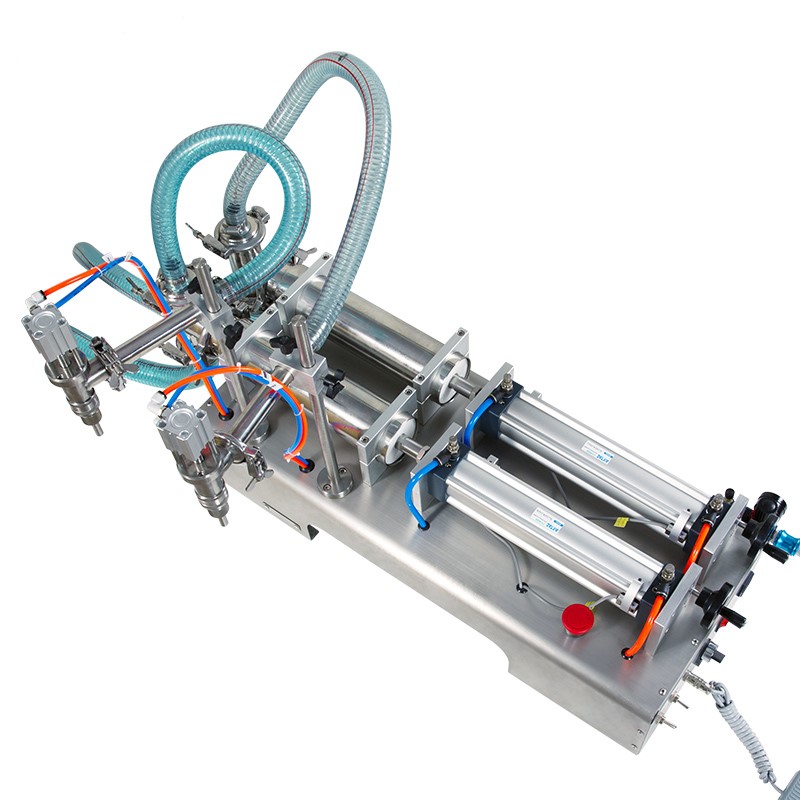

Double head 50-500ml semi automatic liquid filling machine

Name: Double head 50-500ml semi automatic liquid filling machine
Brand: Scienceway Technology
Price: 45000.0 INR
Availability: InStock

Price 45000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Double head 50-500ml semi automatic liquid filling machine Specification

Driven Type
semi automatic

Filling Material
Food & Beverage: juices, sauces, edible oils. Pharmaceuticals: syrups, medicated liquids. Cosmetics & Personal Care: shampoos, lotions, serums. Chemicals & Detergents: cleaners, solvents, liquid chemicals.

Filling Range
50-1000ml

Packaging Type
standard

Air Consumption
0.4-0.6Mpa

Motor Power
electric Volt (V)

Usage & Applications
Pharma, food & beverage, cosmetics, chemicals

Dimension (L*W*H)
1000 700 1500 Millimeter (mm)

Warranty
1 year

Voltage
220 Volt (v)

Product Type
fillig machine

Core Components
Filling Heads (Dual Nozzles) Liquid Reservoir / Hopper Metering Pump / Piston System Control Panel (PLC / Timer / HMI) Valves (Inlet & Outlet) Drive System (Motor / Pneumatic Cylinder) Frame / Chassis Tubing / Liquid Lines Sensors (Level / Photoelectric) Safety Guards / Covers

Weight
80-120 Kilograms (kg)

Double head 50-500ml semi automatic liquid filling machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About Double head 50-500ml semi automatic liquid filling machine

A dual-head liquid filling machine is an industrial packaging device designed to fill liquid products into containers using two dispensing nozzles simultaneously. By having two filling heads working together, it doubles filling output compared to a single-head machine while maintaining high precision and consistency.

How It Works

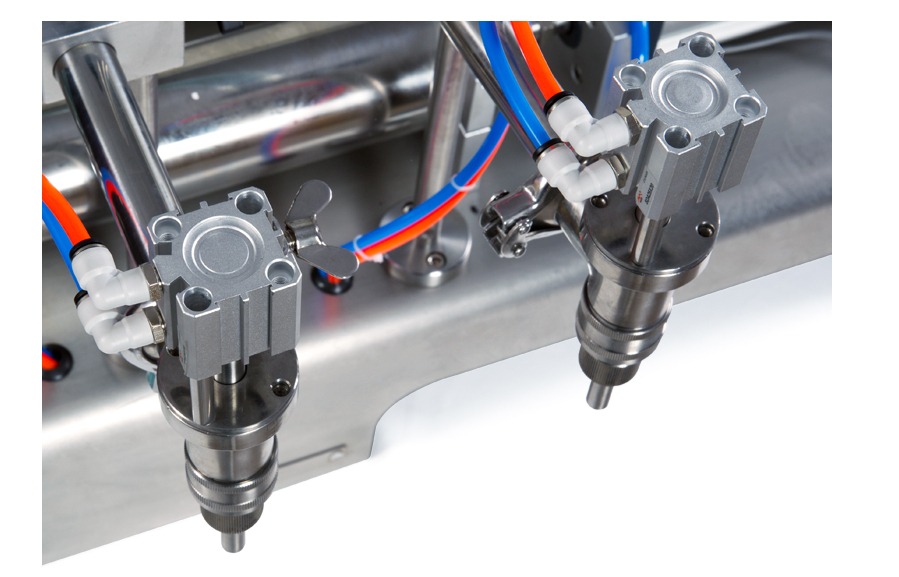

Dual nozzles: Two independent filling heads draw liquid from a reservoir and dispense it into containers placed below them at the same time.
Metering system: A volumetric piston, pump, or flow-based system measures and delivers the exact set volume into each container, helping achieve consistent fills with minimal deviation.
Operation: Depending on model, the machine can be semi-automatic (operator places containers manually and starts fill) or more automated with conveyors and electronic controls.
Control interface: Many machines include a control panel (digital, touchscreen, or simple knobs) to set fill volume, speed, and timing.
